Slim Fixed Outdoor LED Display

Short Description:

SandsLED SPT & SPT-N (Narrow Pixel) slim outdoor LED display have good heat dissipation, high brightness, low power consumption, good waterproof effect, simple appearance, thin and light cabinet.

Product Detail


● Super High Brightness

● Aluminum Module Chassis Heat Dissipation

● Economic Efficient

● Energy Saving

● Stable and Reliable Performance

● Total front & rear service

Main Features

SandsLED Slim Fixed Outdoor LED Display use High-quality SMD Led, stable quality, high brightness, good color consistency, and long service life.

High Refresh Rate & Mixed Splicing

Super Slim Die-casting Aluminum Cabinet

High temperature durability;

Corrosion protection;

Slim Size:

SPS: 960*960*75MM

SPS-N: 500*500/500*750/500*1000

IP65 Protection Level, Suitable for al l-weather outdoor environment, no mater the it is raining, snowing or hot, SandsLED Outdoor LED display still can work perfectly.

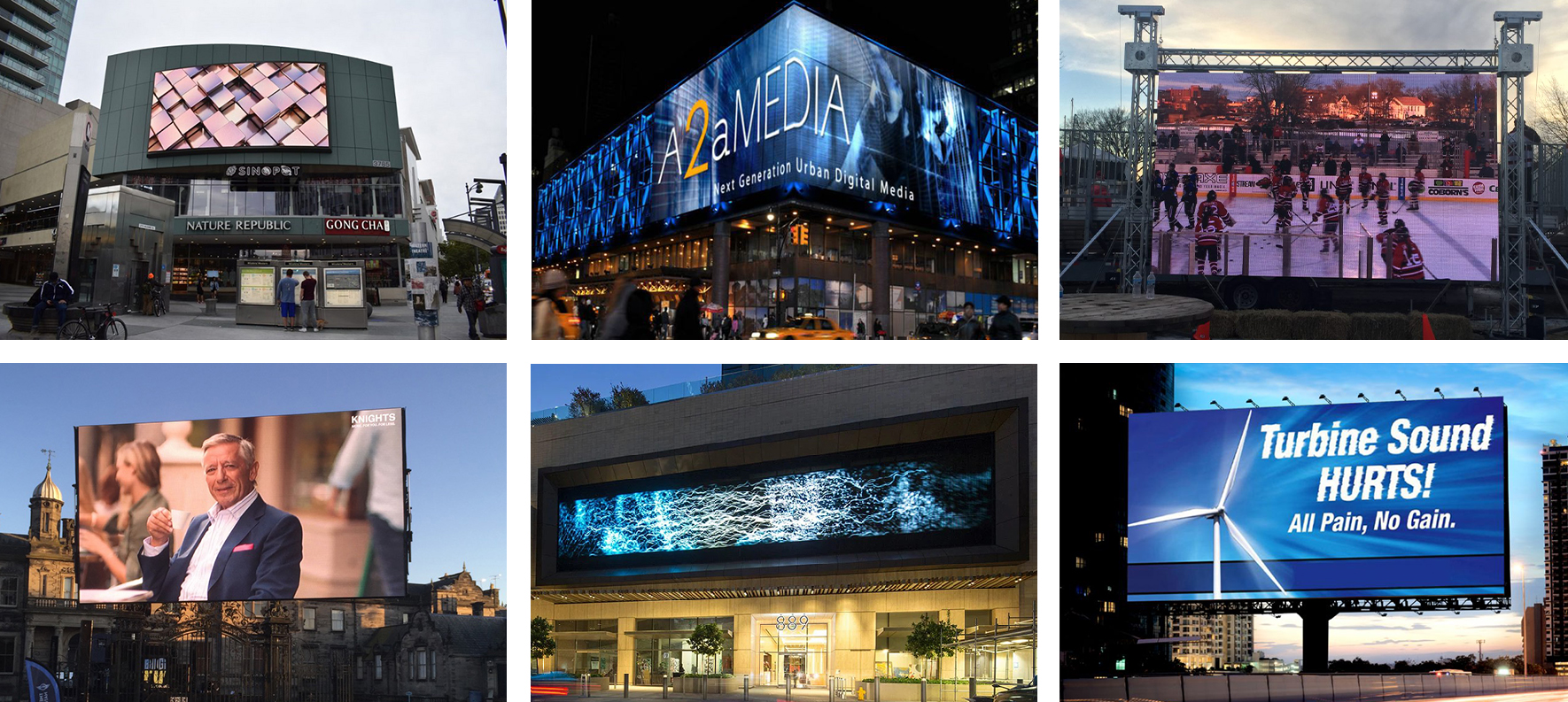

SPS: Digital Signage System, Chain store, Street furniture, Billboard, shopping mall;

SPS-N: Window Screen, Digital Signage System, Bus Station.

Support wall-mounted or hanging installation:

Hardware Features

Connecting plug-in without arrangement to improve stability and facilitate installation, disassembly, and maintenance

The unit structure adopts a new cast aluminum shell with lightweight, high precision, fast heat dissipation.

Point-to-point module design for module front/back maintenance

HD led video wall modular design, easy for installation and field maintenance;

Seamless connection; precise modules for getting a smooth viewing experience.


SandsLED recommends that our customers purchase enough LED display modules for spare replacement. If the LED display modules come from different purchases, the LED display modules may come from different batches, which will cause color difference.

 Technical Specification

Model SPS-P6.67 SPS-P8 SPS-P10 SPS-N2.9 SPS-N3.9 SPS-N4.8
Pixel Pitch P6.67 P8 P10 P2.9 P3.9 P4.8
Cabinet Size(mm*mm*mm) 960*960 960*960 960*960 500*500/500*750/500*1000 500*500/500*750/500*1000 500*500/500*750/500*1000
Horizontal Viewing Angle(Deg) 160 160 160 160 160 160
Vertical Viewing Angle(Deg) 140 140 140 120 120 120
Brightness(cd/m2) 10000 10000 10000 5000-7000 5000-7000 5000-7000
Refresh Rate(Hz) 3840 3840 3840 3840 3840 3840
Max Power Consumption(W/㎡) 700/m² 700/m² 700/m² 700/m² 700/m² 700/m²
Average Power Consumption(W/㎡) 175 175 175 175 175 175
Ingress Protection IP65 IP65 IP65 IP65 IP65 IP65
Working Environment Outdoor Outdoor Outdoor Outdoor Outdoor Outdoor
